灌装机类别

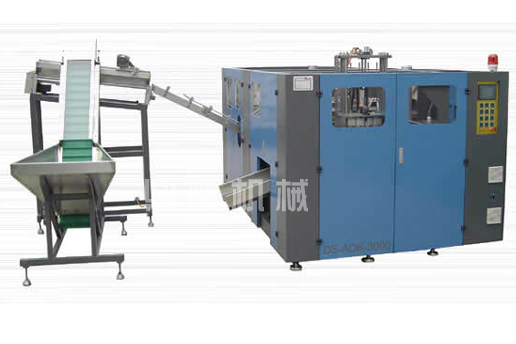

饮料机械辅机（吹瓶机）
AddTime:3/16/2012 10:47:22 AM
|
|
单位 |
AOK-3000-A |
AOK-3000-B | ||
|
成型组
规格
Molding |
合模力Clamping force |
Kn |
16000 |
16000 | |
|
模具行程Clamping stroke |
mm |
80 |
130 | ||
|
拉杆行程Stretching stroke |
mm |
220 |
320 | ||
|
底模行程Base mould stroke |
mm |
40 |
70 | ||
|
瓶子间距Distance between bottles |
mm |
88 |
115 | ||
|
模穴数Cavities |
模穴Cavity |
4 |
4 | ||
|
瓶型
规格
Container |
瓶子最大容量Max. bottle volume |
ml |
700 |
1500 | |
|
最大牙口尺寸Max. jaw size |
mm |
18~38 |
18~38 | ||
|
最大瓶身直径Max. bottle diameter |
mm |
70 |
90 | ||
|
最大瓶身高度Max. bottle height |
mm |
220 |
320 | ||
|
公转座数量Revolutions |
pcs |
80 |
80 | ||
|
** 理论产能
|
瓶/小时 |
3500 |
3000 | ||
|
单元
Utilites |
电力规格 Electrical System | ||||
|
总耗电量Total power |
KW |
48 |
56 | ||
|
加热功率Heating power |
KW |
46 |
54 | ||
|
空压规格 AIR SYSTEM | |||||
|
操作压力Working pressure |
kg/cm2 |
7 |
7 | ||
|
低压耗氧量Oxygen consumption in low pressure |
M3 |
1.6 |
1.6 | ||
|
吹瓶压力Pressure of blowing |
kg/cm2 |
35 |
35 | ||
|
高压耗氧量Oxygen consumption in high pressure |
M3 |
2.4 |
3.0 | ||
|
冷冻水规格 CHILLED WATER | |||||
|
操作压力Working pressure |
kg/cm2 |
3-5 |
3-5 | ||
|
温度范围Temperature range |
°C |
12-16 |
12-16 | ||
|
耗氧量Oxygen consumption |
kcal/hr |
- |
- | ||
|
ltr/mm |
520 |
520 | |||
|
冷却水规格 COOLING WATER | |||||
|
操作压力Working pressure |
kg/cm2 |
5~6 |
5~6 | ||
|
温度范围Temperature range |
°C |
25 |
25 | ||
|
耗氧量Oxygen consumption |
kcal/hr |
156000 |
156000 | ||
|
流量Flux |
ltr/mm |
520 |
520 | ||
|
机台
Machine |
机台尺寸 （L X W X H） |
mm |
3250*2150*1800 |
4160*2350*1800 | |
|
机台重量weight |
Kg |
3500 |
4000 | ||
